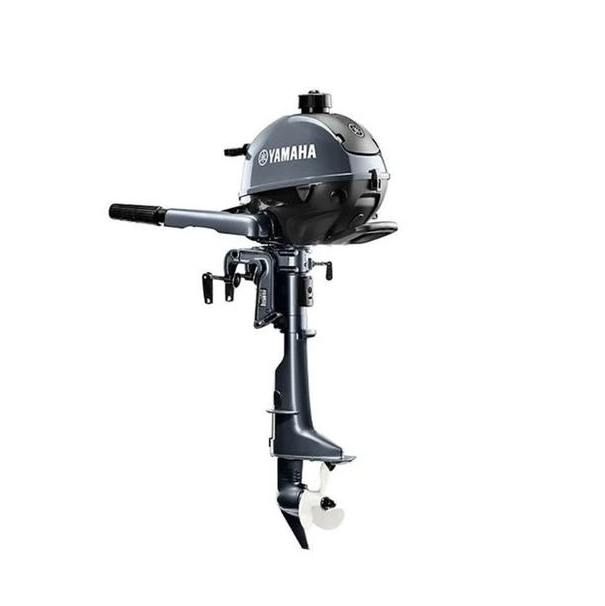

2023 Yamaha F2.5SMHB

Description

Engine & Performance

• Horsepower: 2.5 hp @ 5500 rpm

• Engine Type: 4-stroke, OHV, 1-cylinder

• Displacement: 72 cc

• Bore × Stroke: 54 mm × 31.5 mm

• Compression Ratio: 8.8:1

• Full Throttle RPM Range: 5250–5750 rpm

• Fuel Induction: Carburetor

• Ignition System: TCI

• Recommended Fuel: 87 octane

Dimensions & Weight

• Shaft Length: 15 in (Short Shaft)

• Dry Weight: 37 lbs (17 kg)

• Tilt Angle: 79°

• Trim Range: –4° to +16°

Controls & Features

• Steering: Tiller handle with full 360° swivel

• Throttle: Ergonomic twist-grip

• Starter: Manual

• Gear Shift: Forward & Neutral

• Lubrication: Splash-lubricated

• Cooling: Thermostatic control (recommended)

• Fuel Tank: Built-in 0.9 L

• Storage: Can be stored on its side (front, port, or starboard pads) with no oil leakage

Other Specifications

• Gear Ratio: 2.01:1

• Engine Oil Capacity: 0.35 L

• Spark Plug: CR6HSB

• Emissions Rating: C.A.R.B. 2-Star (50-state compliant)

• Warranty:

  • 3-year limited (pleasure/government)

  • 1-year limited (commercial use)
